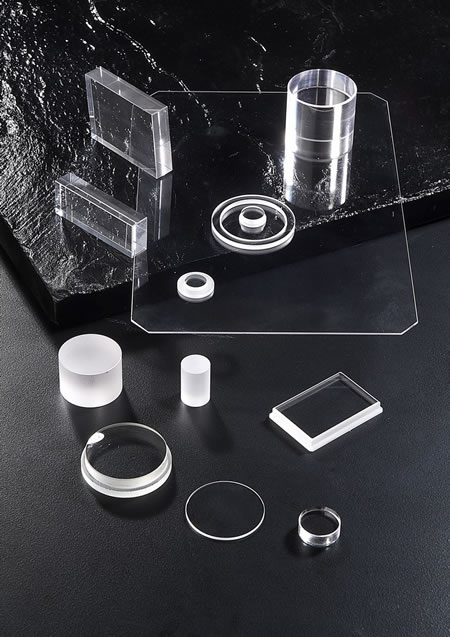

Special Shapes, IR and UV Quality Sapphire Windows

These IR sapphire windows are an economical choice for a variety of optical, mechanical and electronic applications. Optical sapphire has no colouration and with a selection of grades of sapphire transmission ranging from 170nm to 5 microns and sapphire crystal is extremely hard and scratch resistant useful for the visible and IR spectrum. It has excellent thermal conductivity at low temperatures allowing sapphire to be used in many diverse fields requiring thermal conduction and heat radiation. Sapphire has high dielectric constant and is resistant to common chemical acids and alkaline.

Specifications:

Material:

IR/UV/VBLE Grade  Kyropoulos, Czochralski and Verneuil Method single crystal Sapphire

Orientation:

C-axis, A-plane, M-axis, Random

Diameter Tolerance:

Through+/-0.005mm over +/-0.2mm

Thickness Tolerance:

Through+/-0.005mm over +/-0.2mm

Clear Aperture:

Central 85% of Diameter

Parallelism:

>1 arc minutes

Surface Quality:

80-50,60-40 scratch-dig per MIL-O-13830-A

Flatness:

>λ/4  per inch @ 632.8nm

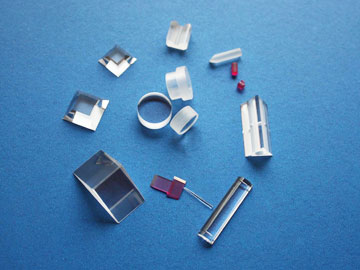

Special Shape Components

We are skilled in special products and are able to process a wide range of shapes according to your technical requirements and drawings.

Materials
Synthetic sapphire/ruby, natural agate, ceramic and other ultrahard materials etc.
