Sapphire Watch Cover,Wire Guide,Endstone,Blade

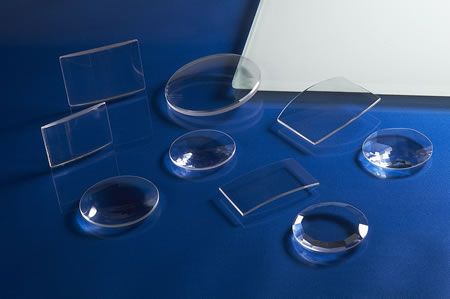

We are also specialized in polishing sapphire watch glass with a veraity of shapes such as normal square, oblong, round, oval, tonneau etc.

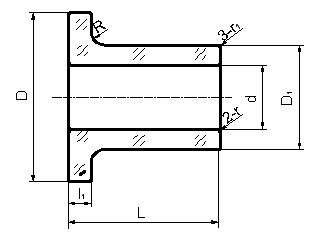

Wire Guide

With the anticorrosion and wearable characteristic, Jewel Wire Guides are extensively applied to textile mechanical field.

1

2

3

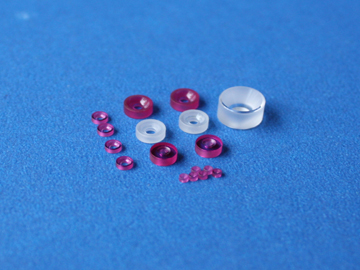

Endstone

Endstone Jewel includes two sorts: the flat end-face bearing and the convex end-face bearing. The jewel end-face bearings made of synthetic sapphire and ruby are widely used for end-face supporting in different high precision instruments, watermeters, flowmeters and many other kinds of apparatus

1

2

3

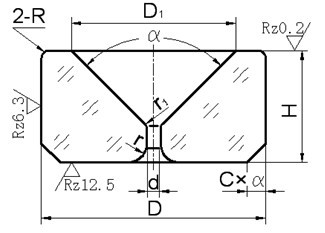

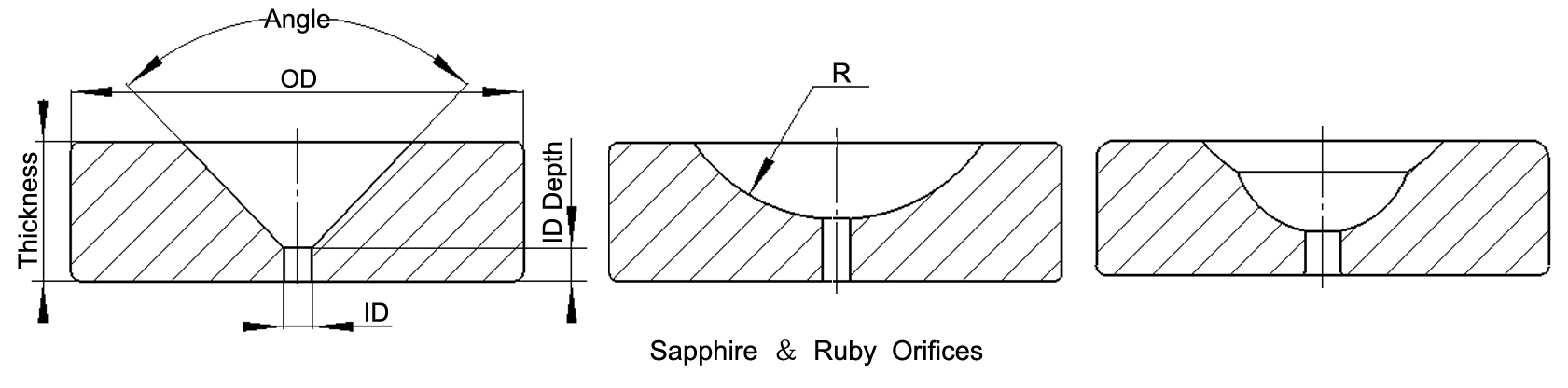

Sapphire Orifices

Typical Applications

Ultra-high pressure water jet;

Blood hematology analyzers;

Ink Jet Printing ;

Flow control;

Specification

Products
Subjects
OD
(Outside Diameter)
(mm)
ID
(Inner Diameter)
(mm)
Thickness
(mm)
R(Cup/ Raised Curvature Radius)
Surface
roughness
Sapphire & Ruby Orifices
Size
1.20 ~ 6.00
0.04 ~ 0.26
0.20 ~ 3.00
≥0.35
the surface for
application:
Rz0.05~Rz0.2
Assemble and
sink surfaces:
Rz1.6
Tolerance
0.004 ~ 0.05
0.003 ~ 0.01
+/-0.005
>+/-0.03
