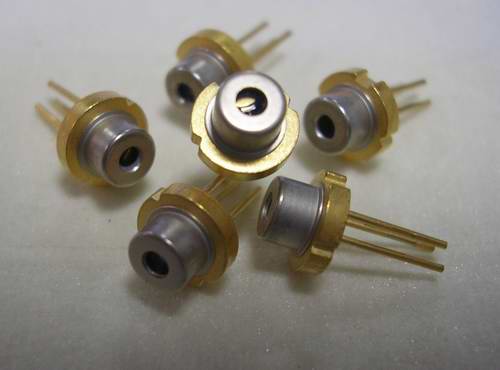

445nm 50mw Single Mode LD
| JLD-445-50 |
|
|
|
|
Min |
Type |
Max |
|
Center Wavelength@25℃ |
440nm |
445nm |
460nm |
|
Spectral Width (FWHM) |
2.0nm |
|
|
Output Power |
----
|
50mW
|
80mW
|
|
|
Emitter |
Single |
|
|
Beam Divergence (FWHM) |
15°┴ x 4°// |
21°┴ x 7°// |
25°┴ x 15°// |
|
Monitor Current |
---- |
|
|
Slope Efficiency |
0.85mW/mA |
0.9mW/mA |
1.2mW/mA |
|
|
Threshold Current (Typ.) |
---- |
30mA |
60mA |
|
|
Operating Current (Typ.) |
---- |
80mA |
120mA |
|
|
Operating Voltage |
---- |
5.5V |
6.5V |
|
|
Package Style |
3.8mm |
450nm High Power Laser Diodes
450nm 1W 1.5W LD with 5.6mm TO18 Package
|
Specifications |
Min |
Type |
Max |
|
Center Wavelength@25℃ |
440nm |
450nm |
460nm |
|
Spectral Width (FWHM) |
3.0nm |
|
Output Power |
----
|
1.5W
|
----
|
|
Recommended Operating Temperature |
25℃ |
|
Beam Divergence |
----- |
---- |
25°┴ x 15°// |
|
Monitor Current |
---- |
|
Slope Efficiency |
---- |
1.0mW/mA |
1.2mW/mA |
|
Threshold Current (Typ.) |
---- |
300mA |
700mA |
|
Operating Current (Typ.) |
---- |
1.3A |
1.6A |
|
Operating Voltage |
---- |
5.0V |
6.5V |
|
Package Style |
5.6mm | |
